Effects of storage temperature on the bioactive compound content and antioxidant activity of aronia (Aronia melanocarpa) fruit

황은선*https://orcid.org/0000-0001-6920-3330, 염미숙
Eun-Sun Hwang*https://orcid.org/0000-0001-6920-3330, Mi Sook Yeom
한경대학교 영양조리과학과
Department of Nutrition and Culinary Science, Hankyong National University, Anseong 17579Korea
* E-mail:ehwang@hknu.ac.kr Phone:82-31-670-5182, Fax:82-31-670-5187

Copyright ⓒ The Korean Society of Food Preservation. This is an Open-Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received: Apr 09, 2019; Revised: Jul 20, 2019; Accepted: Jul 22, 2019

Abstract

The fruit of aronia (Aronia melanocarpa, also called the “black chokeberry), which is rich in anthocyanin, polyphenol, and flavonoid content and possesses antioxidant, anticancerous, and anti-inflammatory properties. In this study, the influence of storage temperature and storage period on the phytochemical content and antioxidant activity of aronia was determined. The total polyphenol and flavonoid contents of aronia extract were found to be 308.48 μg gallic acid equivalent/g dry weight and 5.33 μg quercetin equivalent/g dry weight, respectively. HPLC analysis of aronia reveled four anthocyanin peaks corresponding to cyanidin-3-O-galactoside, cyanidin-3-O-glucoside, cyanidin-3-O-arabinose, and cyanidin-3-O-xylose and three polyphenol peaks corresponding to chlorogenic acid, vanillic acid, and rutin hydrate. Long-term storage at a refrigerated temperature (4℃) reduced the levels the levels of health promoting compounds. We found that the highest amounts of total polyphenols, flavonoids, and anthocyanins were retained in aronia samples stored at -80℃ followed by those stored at -20℃ and 4℃ samples. Furthermore, the samples stored at -80℃ showed the stronger antioxidant activities than those stored at other temperatures. Based on these findings, we concluded that freezing aronia at -80℃ can help preserve its antioxidant activity by maintaining high levels of anthocyanins and other bioactive compounds.

Keywords: aronia; freezing; polyphenols; anthocyanins; antioxidant activity

Introduction

Aronia (Aronia melanocarpa, commonly known as black chokeberry) belongs to the Rosaceae family. Aronia is native to North America and has been grown in Europe since the early 20th century (1). The berries have high anthocyanin, polyphenol, and flavonoid contents and exhibit excellent antioxidant, anti-cancerous, and anti-inflammatory activities (2-4). The contents of physiologically active substances in plants, including aronia, varies depending on the cultivation environment, soil, climate, fertilizer, variety, season, storage, and cooking methods (6,7). Aronia contains large amounts of polyphenols, including tannins, and is used as a raw material in a variety of processed foods and cosmetics. However, the fresh fruit is typically not consumed owing to its distinctive bitter taste (8-10). Therefore, harvested aronia is frozen or stored at refrigerated temperatures for a certain period of time and is often processed as needed. Anthocyanins, which are major physiologically active substances in aronia, are highly unstable and have been reported to be influenced by freezing temperature, freezing rate, light, pH, oxygen, and the presence of coexisting compounds such as enzymes, proteins, and metal ions (11-14). According to Zhang et al. (15), storage at low temperatures in a high-oxygen atmosphere increases anthocyanin stability. On the contrary, the stability of berry products is often enhanced by the removal of oxygen, inactivation of enzymes, and naturally existing compounds such as flavanols and phenolic acids (11,16).

Freezing is the most common storage method for storing large quantities of seasonal fruits. Aronia and other berries are frozen for long-term storage, and frozen berries are used as ingredients in various processed foods. The levels of bioactive compounds can differ between fresh and stored vegetables/fruits depending on the storage time and temperature. In addition, storage conditions can modify nutrient content. There have been several studies (13,14) on the stability of anthocyanins in berries at drying temperatures; however, few studies have examined the stability of physiologically active compounds in berries and their antioxidant activities at refrigeration and freezing temperatures. Therefore, it is imperative to understand the effects of storage conditions, such as time and temperature, on the bioactive compound content of aronia. This study investigated the effects of storage period (0-20 weeks) and temperature (4℃, -20℃, and -80℃) on the levels of bioactive compounds, such as total phenols, flavonoids, and anthocyanins in aronia. In addition, the antioxidant activity of aronia stored under various conditions was examined.

Materials and methods

Materials and reagents

Folin-ciocalteu’s phenol reagent, 2,2-diphenyl-1-picrylhydrazyl radical (DPPH), 2,2´-azino-bis-3-ethylbenzothiazoline-6-sulphonic acid (ABTS), gallic acid, catechin, nitro blue tetrazolium chloride (NBT), nicotinamide adenine dinucleotide (NADH), Tris-HCl, and para-methyl styrene (PMS) were purchased from Sigma-Aldrich Corporation (St. Louis, MO, USA). Anthocyanin and polyphenol standards for HPLC analysis were purchased from Extrasynthese (Genay, France) and Sigma-Aldrich Corporation, respectively. HPLC-grade water, methanol, acetonitrile, and trifluoroacetic acid (TFA) were purchased from Thermo Fisher Scientific Inc. (Fair Lawn, NJ, USA). All the chemicals used were of analytical grade.

The aronia (Aronia melanocarpa, Nero cultivar) fruit was harvested when optimally ripe at a local fram in Sangju, Korea, The fruit was free from insect and mechanical damage. The aronia samples were subdivided into 100 g portions, packed in plastic zipper bags (200×149×47 mm, Ziploc, SC Johnson & Son, Inc. Bay City, MI, USA), and stored for fixed period of time.

Sample preparation and storage

The effect of storage on the content of bioactive compounds and antioxidant activity was evaluated by storing aronia for up to 20 weeks (0, 4, 8, 12, 16, and 20 weeks) at three different temperatures: 4℃ (refrigerated), -20℃ (freezing), and -80℃(deep-freezing). After the designated storage period, the samples were freeze-dried at -80℃. The freeze-dried samples were ground with a food grinder (Hanil, Wonju, Korea). Lyophilized powdered samples were stored at -80℃ until analysis.

Determination of total polyphenols and flavonoids

Lyophilized aronia powder was extracted with 25 volumes of ethanol for 24 h at room temperature. The ethanol extract was filtered through Whatman No.1 filter paper and concentrated using a rotary vacuum evaporator (EYELA 400 series, Tokyo, Japan). The dried extracts was then used in the analyses of total polyphenol and flavonoid contents. The total polyphenol content of aronia was measured using Folin-Ciocalteu’s phenol reagent according to the method of Thi and Hwang (17). The total flavonoid content of aronia was measured using the method of Thi and Hwang (17).

Determination of anthocyanins and polyphenols by HPLC

Freeze dried samples (-100 mg) were mixed with 5 mL methanol containing 0.1% formic acid and vortexed for 1 min. Then, the mixture was centrifuged for 5 min and the upper layer was transferred to another glass tube. The extraction process was performed twice. The methanolic fractions were combined and evaporated to dryness using a rotary evaporator (EYELA, Tokyo, Japan). The residue was redissolved in the extraction solvent with an appropriate dilution for HPLC analysis (Ultimate 3,000, Dionex, Sunnyvale, CA, USA), and an injecition volume of 10 μL was used.

Anthocyanins were separated by C18 Zorbox SB column (4.6×250 mm, 5 mm particle size, Agilent Technologies Inc., Santa Clara, CA, USA) and detected at 520 nm using a UV detector (Waters, Manchester, UK). The mobile phase was a mixture of (A) water with 5% formic acid and (B) acetonitrile with 5% formic acid. The samples were separated according to the following gradient: A/B (v/v) = 95/5 (0-5 min), 90/10(8 min), 85/15(13-18 min), 80/20(25 min), 70/30(28-32 min), 95/5(35-40 min) at a flow rate of 0.8 mL/min.

Polyphenols were separated using Agilent XDB C18 column (4.6×150 mm, 5 μm) and detected at 280 nm using a a UV detector (190-800 DAD scanning, Waters). The mobile phase was a mixture of (A) water with 0.3% TFA and (B) acetonitrile. The samples were separated according to the following gradient: A/B (v/v) = 95/5 (0-39 min), 40/60 (40 min), 0/100 (45-50 min), 95/5 (55-60 min) at a flow rate of 0.8 mL/min.

Determination of antioxidant activity

The DPPH, ABTS, and superoxide radical scavenging activities of 80% ethanolic extract of aronia were determined using the method described by Thi and Hwang (18). The reducing power of the aronia extracts were determined according to the method of Thi and Hwang (17). Briefly, 0.25 mL of 0.2 M phosphate buffer (pH 6.6) and 0.25 mL of 1% potassium hexacyanoferrate (K3Fe(CN)6) were mixed and incubated at 50℃ for 20 min. To terminate the reaction, 0.25 mL of 10% trichloroacetic acid solution was added, and then the mixture was centrifuged at 3,000 rpm for 10 min. Subsequently, a mixture of 0.5 mL of the supernatant, 0.5 mL of distilled water and 0.1 mL of 0.1% ferric chloride (FeCl3) solution was allowed to react for 10 min. The absorbance of this mixture was then measured at 700 nm using a microplate reader (Infinite M200 Pro, Tecan Group Ltd. San Jose, CA, USA) to determine the reducing power.

Statistical analysis

All results are presented as mean±SD. Statistical analysis was performed using the SPSS software package (version 17.0). Data were compared using one-way analysis of variance; p<0.05 was considered significant.

Results and discussion

Total polyphenol and flavonoid contents

The concentration of total polyphenols in aronia samples during storage at three different temperatures over a 20 week period are presented in Table 1. The total polyphenol content in fresh aronia before storage was 905.4 mg. However, the total polyphenol content decreased during storage. Over the 20 week storage period, we observed that a lower storage temperature resulted in a higher retention of the total polyphenol content. Notably, deep freezing of aronia at -80℃ was the best mode for preserving the total polyphenol content over 20 weeks. By contrast, refrigeration at 4℃ resulted in the highest loss of total polyphenols, with a total polyphenol content of 658.0 mg after 20 weeks. The total polyphenol retention rate after storage for 20 weeks were 89.6%, 77.1%, and 72.7% at -80℃, -20℃, and 4℃, respectively. According to Misiak and Irzyniec (19), storage of aronia at 3℃ for 6 months resulted in a 30% reduction in polyphenol compounds. Aronia has much hiher contents of polyphenol compounds than any other berries such as blueberries, raspberries, and strawberries, and the stability of polyphenol compounds is cloasely related to the storage temperature. The polyphenol content varies depending on the variety of aronia, and it is generally reported that 25-45% of the phenolic compounds are anthocyanins (20,21).

Table 1. The total polyphenol content of aronia stored at different storage temperatures (mg GAE/g dry weight)
Temp.
(℃)
Storage Period (week)
0 4 8 12 16 20
4 905.4±23.7aE 782.8±31.6aD 776.5±26.2aCD 761.3±19.1aC 743.3±23.1aB 658.0±20.1aA
-20 905.4±23.7aF 854.5±21.1bE 839.0±27.2bD 813.5±23.2bC 793.8±26.7bB 698.4±23.5bA
-80 905.4±23.7aE 891.0±29.6cD 859.5±24.2cC 840.0±24.6cB 833.3±24.6cB 811.5±20.8cA

Data were the mean±SD of three separate experiments.

a-cValues with the different superscript within the same column are significantly different at p<0.05.

A-EMeans with different superscripts in the same row are significantly different at p<0.05.

GAE, gallic acid equivalent.

Download Excel Table

The concentrations of total flavonoids in aronia samples during storage at three different temperatures over a 20 week period are presented in Table 2. The total flavonoid content in fresh aronia before storage was 423.5 mg. However, the total flavonoid content decreases during storage. Over the 20 week storage period, we observed that a lower the storage temperature resulted in greater retention of the total flavonoid content. Notably, deep freezing at -80℃ allowed that greatest amount of total flavonoids to be retained during storage of aronia for 20 weeks. By contrast, refrigeration at 4℃ resulted the highest loss of total flavonoids, with the total flavonoid content decreasing to 217.1 mg after 20 weeks. The total flavonoid retention rate after storage for 20 weeks were 83.0%, 76.3%, and 51.3% at -80℃, -20℃, and 4℃, respectively.

Table 2. The total flavonoid content of aronia stored at different storage temperatures (mg CE/g dry weight)
Temp.
(℃)
Storage period (week)
0 4 8 12 16 20
4 423.5±20.4aF 344.4±18.9aE 322.2±13.0aD 307.1±16.2aC 285.8±11.5aB 217.1±17.4aA
-20 423.5±20.4aD 380.3±13.4bCD 374.7±15.3bC 347.6±13.8bB 326.8±18.2bA 323.1±15.7bA
-80 423.5±20.4aE 401.4±14.7cD 390.1±14.2cC 383.6±17.4cBC 376.7±12.9cB 351.3±16.3cA

Data were the mean±SD of three separate experiments.

a-cValues with the different superscript within the same column are significantly different at p<0.05.

A-EMeans with different superscripts in the same row are significantly different at p<0.05.

CE=catechin equivalent

Download Excel Table
Anthocyanins content by HPLC

Fig. 1 shows a typical chromatogram of anthocyanins in aronia extract. We detected four anthocyanins, namely, cyanidin-3-O-galactoside, cyanidin-3-O-glucoside, cyanidin-3-O-arabinoside, and cyanidin-3-O-xylose, at retention times of 16.8, 17.5, 18.6, and 22.8 min, respectively. Cyanidin-3-O-galactoside was the major anthocyanin followed by cyanidin-3-O-arabinoside, cyanidin-3-O-xylose, and cyanidin-3-O-glucoside. Table 3 shows the anthocyanin contents of aronia at different storage temperatures over 20 weeks. The storage temperatures affected the anthocyanin content, and the highest anthocyanin contents were detected at the lowest storage temperature of -80℃ followed by -20℃ and 4℃. The initial cyanidin-3-O-galactoside content of aronia was 9462.6 mg/kg dry weight. After storage for 4, 12, and 20 weeks at 4℃, it decreased 88.6%, 67.0% and 28.7%, respectively, of the initial value. After storage for 4, 12, and 20 weeks at -20℃, the cyanidin-3-O-galactoside contents were found to be 97.4%, 90.5% and 68.5%, respectively, of the initial value. After 4, 12, and 20 weeks of storage at -80℃, the cyanidin-3-O-galactoside contents were 98.7%, 86.7%, and 85.2%, respectively, of the initial value. At each temperature, the loss of anthocyanins increased as the storage period became longer. The content of cyanidin-3-O-arabinose was 4376.8 mg/kg before storage, but it decreased after storage depending on the temperature and duration. In the case of storage for 20 weeks at 4℃, -20℃, and -80℃, the cyanidin-3-O-arabinose contents were 39.7%, 68.5%, and 84.5%, respectively, of the initial value. Similarly, higher losses of cyanidin-3-O-glucoside and cyanidin-3-O- xylose were observed as the storage temperatures increased.

kjfp-26-5-455-g001

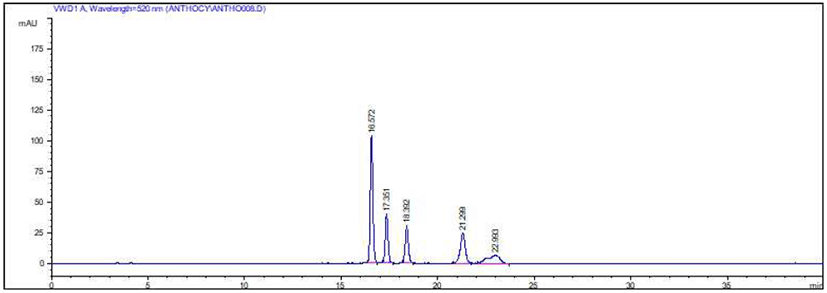

Fig. 1. Representative HPLC chromatogram of anthocyanins in standards. RT: 16.8 min, cyanidin-3-O-galactoside; 17.5 min, cyanidin-3-O-glucoside; 18.6 min, cyanidin-3-O-arabinoside; 22.8 min, cyanidin-3-O-xylose.
Download Original Figure
Table 3. The anthocyanin content of aronia stored at different storage temperatures (mg/kg dry weight)
Storage temp. (℃) Storage time (week) cyanidin-3-O-galactoside cyanidin-3-O-glucoside cyanidin-3-O-arabinose cyanidin-3-O-xylose
Fresh (Initial) 9462.6±314.2f 588.1±48.1f 4376.8±147.0f 850.6±10.9f
4 4 8386.2±529.2d 555.4±39.9e 3930.7±249.8e 777.8±45.6e
8 6598.9±504.9c 414.3±28.6c 3075.4±201.6c 585.0±24.9c
12 6336.6±192.6c 407.6±18.8c 3000.6±190.1c 576.8±32.2c
16 5955.5±671.1b 379.3±47.2b 2799.0±321.8b 535.0±71.8b
20 3659.4±231.1a 226.7±24.7a 1714.0±123.3a 324.9±14.3a
-20 4 9217.3±128.3f 574.5±20.5a 4218.4±97.0e 837.3±40.1ef
8 8710.5±111.0e 560.3±38.6a 4065.0±88.1e 817.7±55.7ef
12 8564.5±136.5de 541.0±23.0a 3943.8±70.8e 796.3±40.2e
16 6502.7±176.4c 398.7±12.8c 3012.2±68.5c 572.7±15.8c
20 6477.4±129.8c 393.1±12.7c 2999.4±46.3c 560.4±17.9c
-80 4 9341.1±336.7f 583.7±39.3f 4305.1±117.6f 837.0±49.9f
8 8831.8±395.4e 548.9±32.4e 4041.0±171.3e 792.4±45.8e
12 8207.6±301.9d 498.9±17.7d 3942.6±142.8e 774.1±33.7e
16 8179.4±353.2d 485.1±26.2d 3750.8±183.5d 709.4±40.8d
20 8059.0±330.1d 483.7±23.2d 3697.1±179.9d 707.2±41.3d

Data were the mean±SD of three separate experiments.

a-fValues with the different superscript within the same column are significantly different at p<0.05.

Download Excel Table

When stored for a long time, the physiologically active substances in foods change and decompose, even at freezing temperature, which has an important influence on antioxidant activity (22). The stability of bioactive compound content during freezing is influenced by various factors such as freezing rate, freezing temperature, plant variety, and pH (23). Ancos et al. (24) showed that the total anthocyanin content in raspberry significantly decreased by 15-27%, cyanidin-3-glucoside decreased by 21-34% in Rubi cultivar and 15-40% in Zeva cultivar compared with those in the fresh fruit after storage for 1 year at -20℃. Syamaldaevi et al. (25) confirmed that the anthocyanin content decreased by 21%, 29%, and 16% when red raspberry was stored for 378 days at -20℃, -35℃, and -80℃, respectively. Jacques et al. (26) reported that the anthocyanin content was reduced by 57%, 50%, and 31% when blackberry was stored at -10℃, -18℃, and -80℃, respectively for 6 months. Thus, the anthocyanin content is closely related to the freezing temperature and lower freezing temperature reduces the reduction rate. As a result, deep-freezing at -80℃ has been suggested to be superior to refrigeration or normal freezing at -20℃ for preserving antioxidants during the storage of food products.

Polyphenols content by HPLC

Fig. 2 shows a typical chromatogram of polyphenols in aronia extract. We detected three polyphenols, namely, chlorogenic acid, vanillic acid, and rutin hydrate, at retention times of 14.0, 15.5, and 21.7 min, respectively. Chlorogenic acid was the major polyphenol followed by rutin hydrate and vanillic acid. Table 4 shows the polyphenol content of aronia at different storage temperatures over 20 weeks. The storage temperatures affected the polyphenol content, and the highest amount of polyphenol contents were detected in the lowest storage temperature of -80℃ followed by -20℃ and 4℃. The initial chlorogenic acid content in aronia was 5,187.1 mg/kg dry weight. After storage for 4, 12, and 20 weeks at 4℃, the chlorogenic acid content decreased to 83.9%, 69.5%, and 28.8%, respectively, of the initial value. After storage for 4, 12, and 20 weeks at -20℃, the chlorogenic acid contents were 92.4%, 90.6% and 66.4%, respectively, of the inithial value. After 4, 12, and 20 weeks of storage at -80℃, the chlorogenic acid contents were 99.5%, 93.4%, and 90.7%, respectively, of the initial value. The content of vanillic acid was 92.8 mg/kg before storage, but decreased during storage depending on the storage temperature and duration. When stored for 20 weeks at 4℃, -20℃, and -80℃, the vanillic acid contents were 26.3%, 60.8%, and 73.5%, respectively of the initial value. Similar to the anthocyanin content, the polyphenol content decreased with increasing storage period and the loss of polyphenol content decreased at lower storage temperatures.

kjfp-26-5-455-g002

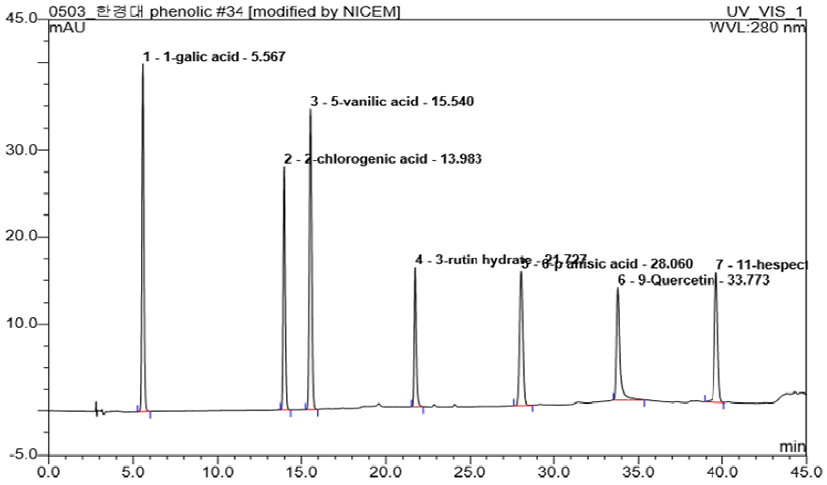

Fig. 2. Representative HPLC chromatogram of polyphenols in standards. RT: 14.0 min, chlorogenic acid; 15.5 min, vanillic acid; 21.7 min rutin hydrate.
Download Original Figure
Table 4. The polyphenol content of aronia stored at different storage temperatures (mg/kg dry weight)
Storage
temp.(℃)
Storage time (week) Chlorogenic acid Vanillic acid Rutin hydrate
Fresh (Initial) 5160.1±126.9f 92.8±9.7f 112.3±8.9f
4 4 4351.3±98.6d 76.8±8.6e 83.2±7.6d
8 3696.7±87.3c 68.2±7.3d 73.6±6.8c
12 3603.1±78.9c 41.7±5.1b 65.2±5.4b
16 2970.7±65.4b 39.0±4.2b 64.4±5.7b
20 1493.5±35.8a 24.4±2.7a 52.4±6.2a
-20 4 4790.4±87.5e 89.3±9.1f 101.0±8.7e
8 4751.9±82.4e 80.6±8.5e 95.8±8.4e
12 4701.3±76.3e 72.7±4.3e 85.2±7.6d
16 3451.2±70.8c 68.9±4.6de 69.8±6.3c
20 3442.2±71.2c 56.4±3.8c 58.4±4.9b
-80 4 5160.1±103.2f 90.4±9.2f 105.9±9.4e
8 5048.6±116.3f 88.4±8.7f 96.7±7.8e
12 4846.6±93.1e 78.3±5.9e 91.4±8.4de
16 4829.2±90.6e 75.2±6.2e 82.8±6.3d
20 4702.5±75.7e 68.2±6.5de 77.2±6.1c

Data were the mean±SD of three separate experiments.

a-fValues with the different superscript within the same column are significantly different at p<0.05.

Download Excel Table
Antioxidant activity

The DPPH radical scavenging activities of aronia stored at various temperatures over 20 weeks are shown in Table 5. The DPPH radical scavenging activity showed a strong relationship with the storage period and tended to decrease as the storage period became longer. Additionally, the DPPH radical scavenging activity was significantly higher for the samples stored at -80℃ than for those refrigerated at 4℃ or frozen at -20℃. For all the samples, the DPPH radical scavenging activity of the aronia extracts increased in a concentration-dependent manner (12.5-100 μg/mL). Before storage, the DPPH radical scavenging activity of the 25 μg/mL aronia extract was 37.9%, whereas higher extract concentration of 50 μg/mL and 100 μg/mL exhibited increased DPPH radical scavenging activities of 58.9% and 65.1%, respectively. The average inhibition of DPPH radical formation in 100 μg/mL arnoia extracts stored at -80℃, -20℃, and 4℃ for 20 weeks was 58.0%, 49.1%, and 20.1%, respectively. Although the DPPH radical scavenging activity decreased when aronia was stored at -80℃, the reduction was less than at 4℃ or -20℃. Thus, storing aronia at cryogenic temperatures rather than at normal refrigeration or freezing temperatures is effective for maintaining the DPPH radical scavenging activity.

Table 5. DPPH radical scavenging ability of aronia stored at different storage temperatures (%)
Storage temp (℃) Storage time
(week)
Concentration (μg aronia extract/mL)
12.5 25 50 100
Fresh (initial) 25.6±2.2fA 37.9±3.6fA 58.9±5.1fA 65.1±5.6fA
4 4 18.1±1.4cA 29.8±2.9eB 44.3±4.2dC 54.9±4.5dD
8 12.2±1.5bcA 26.3±2.5dB 30.9±3.4cC 43.9±4.3cD
12 8.1±0.6bA 15.1±1.2bB 20.4±2.9bC 32.9±3.2bD
16 9.5±0.3bA 12.9±1.2aB 15.1±1.4aB 29.4±1.6bC
20 5.3±0.5aA 9.7±1.4aAB 12.9±1.7aB 20.1±1.2aC
-20 4 22.9±2.8eA 35.7±2.7eB 54.8±4.5eC 62.8±5.5eD
8 20.2±1.4dA 33.2±2.3dB 49.9±3.7dC 62.1±4.3eD
12 19.3±1.2cA 30.5±2.3cB 47.9±2.4dC 61.4±1.4eD
16 15.2±3.5cA 29.9±1.7cB 37.2±2.9cdC 58.2±3.3deD
20 12.2±3.5bcA 19.7±1.4bA 32.9±2.7cB 49.1±2.2dC
-80 4 23.3±2.6eA 35.8±1.9eB 56.2±4.1eC 62.8±1.6eD
8 21.1±2.7dA 33.5±2.5dB 52.9±3.4dC 60.7±4.9eD
12 20.1±2.9dA 31.3±1.2cB 51.4±2.8dC 61.5±4.4eD
16 18.1±2.3cA 29.0±2.3cB 50.7±5.1dC 59.1±3.4deD
20 16.3±1.2cA 30.7±2.2cB 47.7±3.5dC 58.0±3.4deD

Data were the mean±SD of triplicate experiment.

a-fMeans with different superscripts in the same column are significantly different at p<0.05.

A-DMeans with different superscripts in the same row are significantly different at p<0.05.

Download Excel Table

The ABTS radical scavenging activities of aronia stored at different temperatures are shown in Table 6. The ABTS radical scavenging activities increased in a concentration dependent manner (12.5-100 μg/mL). The ABTS radical scavenging activities of the 100 μg/mL aronia extract before storage was 71.2%. However, the ABTS radical scavenging activity of the 100 μg/mL aronia extract stored at 4℃ for 4, 12, and 20 weeks decreased to 58.4%, 36.3% and 17.8%, respectively. By contrast, the ABTS radical scavenging activities of 100 μg/mL aronia extract stored at -80℃ for 4, 12, and 20 weeks were 68.4%, 65.9%, and 65.6%, respectively, indicating that the antioxidant activity was not lost in the storage period of 20 weeks.

Table 6. ABTS radical scavenging ability of aronia stored at different storage temperatures (%)
Storage temp (℃) Storage time
(week)
Concentration (μg aronia extract/mL)
12.5 25 50 100
Fresh (initial) 32.8±1.2fA 51.3±3.8fB 60.2±5.2fC 71.2±5.5fD
4 4 8.0±3.3bA 24.4±2.7aB 40.4±2.3aC 58.4±4.4eD
8 7.0±2.3bA 23.8±2.9cB 32.6±1.7cC 46.9±3.5dD
12 6.5±1.3bA 19.2±1.8bB 26.9±1.1bC 36.3±2.8cD
16 4.4±1.2abA 18.6±1.3bB 20.7±1.0abC 24.4±2.4bD
20 2.2±0.5aA 7.6±1.1aB 17.1±1.8aC 17.8±2.3aC
-20 4 21.9±2.5eA 35.0±3.6deB 54.8±4.9efC 62.7±4.7efD
8 17.4±1.7dA 29.7±2.9dB 50.0±5.2eC 55.2±4.8eD
12 11.1±1.5cA 25.6±2.6cB 47.3±4.9eC 47.1±3.8dC
16 7.8±3.1bA 20.8±2.1bB 37.1±1.2cdC 41.2±2.2cdD
20 3.4±1.6aA 17.1±1.2bB 33.6±1.8cC 40.2±2.9cdD
-80 4 31.4±3.6fA 49.1±3.8fB 58.8±5.2fC 68.4±5.4fD
8 30.1±2.5fA 47.8±3.9eB 57.6±3.9efC 67.2±5.6efD
12 28.2±2.6eA 43.9±2.7eB 55.7±3.7efC 65.9±2.7efD
16 27.8±3.7eA 43.1±3.2eB 55.6±2.3efC 65.7±2.8efD
20 25.7±3.3eA 41.0±2.5eB 53.5±3.6efC 65.6±2.2efD

Data were the mean±SD of triplicate experiment.

a-fMeans with different superscripts in the same column are significantly different at p<0.05.

A-DMeans with different superscripts in the same row are significantly different at p<0.05.

Download Excel Table

The superoxide anions scavenging activities of aronia extract are shown in Table 7. The superoxide anion scavenging activity of 100 μg/mL aronia extract before storage was 45.8%. However, after storage at 4℃ for 4, 12, and 20 weeks, the superoxide anion scavenging activity of the 100 μg/mL aronia extract decreased to 35.1%, 31.2%, and 11.0%, respectively. By contrast, when stored at -80℃ for 4, 12, and 20 weeks, the superoxide anion scavenging activities of 100 μg/mL aronia extract was 43.1%, 42.1%, and 37.0%, respectively, and the antioxidant activity was not lost in the storage period of 20 weeks. Thus, deep-freezing at -80℃ was more effective than storage at both 4℃ or -20℃ in terms of retaining the superoxide anion scavenging activity of aronia extract.

Table 7. Superoxide anion radical scavenging ability of aronia stored at different storage temperatures (%)
Storage temp (℃) Storage time
(week)
Concentration (μg aronia extract/mL)
12.5 25 50 100
Fresh (initial) 10.3±0.3fA 18.1±0.5fB 27.4±1.2fC 45.8±1.1fD
4 4 4.9±1.2dA 8.3±0.9eB 15.7±1.3cC 35.1±0.3cD
8 3.6±1.0cA 7.2±1.4dB 14.4±1.3cC 34.4±0.8cD
12 3.1±0.6cA 5.9 ±0.9cB 12.6±0.9bC 31.2±1.5bD
16 2.7±0.5bA 4.6±1.2bB 11.6±2.0bC 29.4±0.4bD
20 0.8±1.4aA 1.9±2.5aB 6.5±2.6aC 11.0±2.0aD
-20 4 8.0±2.4eA 10.6±0.4eB 17.8±0.6dC 41.9±0.2dD
8 4.8±0.8dA 9.4±2.8eB 16.6±2.6dC 41.3±0.5dD
12 4.2±0.2cA 7.5±0.1dB 16.5±0.7dC 39.2±1.4dD
16 2.8±0.6bA 5.3±0.3bcB 14.8±0.4cC 33.3±0.6cD
20 1.7±0.6aA 4.2±0.4bB 12.5±0.4bC 32.6±0.2cD
-80 4 9.6±0.5fA 16.2±0.7aB 25.5±1.1eC 43.1±0.2eD
8 6.4±0.6eA 12.9±0.3aB 23.2±0.9deC 42.7±0.9eD
12 5.2±0.8dA 10.7±0.7aB 21.2±0.6deC 42.1±0.4eD
16 4.3±0.6cdA 8.2±0.4aB 19.0±0.9dC 40.6±0.2dD
20 2.9±0.5cA 6.9±1.1aB 15.9±1.2cC 37.0±0.8cD

Data were the mean±SD of triplicate experiment.

a-fMeans with different superscripts in the same column are significantly different at p<0.05.

A-DMeans with different superscripts in the same row are significantly different at p<0.05.

Download Excel Table

The reducing powers of aronia extract during storage for 20 weeks at different storage temperatures are presented in Table 8. The reducing power is expressed as the absorbance at 700 nm, where a higher the absorbance value corresponds to a higher reducing power. The reducing power of 25 μg/mL aronia extract before storage was 0.312. As the extract concentration increased to 50 μg/mL and 100 μg/mL, the reducing power increased to 0.458 and 0.735, respectively. However, after storage at 4℃, -20℃, and -80℃ for 4 weeks, the reducing powers of the 100 μg/mL aronia extract were 0.552, 0.523, and 0.718, respectively. Similar to the results of the other antioxidant tests, the reducing power of aronia stored at cryogenic temperatures was higher than those of aronia stored at normal refrigeration and freezing temperatures. Furthermore, the reducing power tended to decrease with increasing storage period.

Table 8. Reducing power (absorbance measured at 700 nm) of aronia stored at different storage temperatures (O.D)
Storage temp (℃) Storage time
(week)
Concentration (μg aronia extract/mL)
12.5 25 50 100
Fresh (initial) 0.201±0.002fA 0.312±0.002fB 0.458±0.003fC 0.735±0.005eD
4 4 0.146±0.000dA 0.203±0.001dB 0.306±0.002dC 0.552±0.001dD
8 0.140±0.000dA 0.193±0.003cB 0.282±0.002cC 0.456±0.002bD
12 0.137±0.001cA 0.184±0.003cB 0.266±0.002cC 0.442±0.001bD
16 0.128±0.001bA 0.143±0.001bB 0.220±0.001bC 0.434±0.001bD
20 0.117±0.005aA 0.131±0.000aB 0.199±0.004aC 0.322±0.001aD
-20 4 0.145±0.000dA 0.207±0.001dB 0.313±0.000dC 0.523±0.001cD
8 0.142±0.001dA 0.194±0.000cB 0.299±0.001cC 0.516±0.000cD
12 0.140±0.002dA 0.193±0.002cB 0.288±0.000cC 0.513±0.001cD
16 0.135±0.000cA 0.171±0.000cB 0.260±0.001cC 0.432±0.001bD
20 0.126±0.001bA 0.157±0.001bB 0.216±0.001bC 0.341±0.000aD
-80 4 0.193±0.003fA 0.290±0.002eB 0.429±0.002eC 0.718±0.003dD
8 0.174±0.001eA 0.196±0.001dB 0.394±0.004eC 0.526±0.002cD
12 0.163±0.001eA 0.192±0.001cB 0.352±0.002dC 0.504±0.001cD
16 0.158±0.000deA 0.190±0.001cB 0.317±0.001dC 0.502±0.004cD
20 0.147±0.000dA 0.188±0.000cB 0.284±0.001cC 0.472±0.001bD

Data were the mean±SD of triplicate experiment.

a-fMeans with different superscripts in the same column are significantly different at p<0.05.

A-DMeans with different superscripts in the same row are significantly different at p<0.05.

Download Excel Table

Antioxidant activity measurements allow quantification of the protection ability against free radicals. Recently, the high antioxidant power of aronia has attracted much attention. The correlation between the total polyphenol, flavonoid, and anthocyanin contents in aronia have been correlated to the antioxidant activities using in vitro assays. Various in vitro and in vivo studies have shown that antioxidant and lipid peroxidation activities increase in proportion to the concentrations of polyphenol and anthocyanin compounds in aronia (27-29). Rugina et al. (30) showed that the total proanthocyanidin and anthocyanin content in aronia had a direct correlation with antioxidant activity, which is consistent with the results of this study. Furthermore, antioxidant activity have been shown to be directly proportional to the contents of chlorogenic acid, neochlorogenic acid, cyanidin-3-arabinoside, cyanidin-3-galactoside, and epicatechin in aronia (27).

In conclusion, the extracts of aronia are good scavengers of active oxygen species, including DPPH radicals, ABTS radicals, and superoxide anions. In general, it was found that deep freezing at -80℃ retained high amounts of bioactive compounds and effectively preserved the antioxidant compounds in aronia, which have been shown to inhibit several harmful free radicals. In particular, deep freezing at -80℃ was a more effective storage method than freezing at -20℃ or refrigeration at -4℃. The findings of this study also suggested that owing to its inhibitory effects, aronia extract can potentially be used as a functional ingredient against free-radical-associated diseases.

요 약

본 연구에서는 아로니아의 저장온도에 따른 폴리페놀, 플라보노이드, 안토시아닌의 함량과 항산화 활성의 변화를 측정하였다. 저장하기 전의 신선한 아로니아 추출물의 총 폴리페놀과 총 플라보노이드 함량은 g 건조 중량 당 각각 gallic acid와 catechin을 기준으로 905.4 mg 및 423.5 mg으로 나타났다. 아로니아 추출물에서 4종류의 안토시아닌(cyanidin-3-O-galactoside, cyanidin-3-O-glucoside, cyanidin-3-O-arabinose 및 cyanidin-3-O-xylose)과 3종류의 폴리페놀(chlorogenic acid, vanillic acid및 rutin hydrate)을 HPLC 분석으로 확인하였다. 아로니아의 저장 온도에 따른 유효물질의 함량은 -80℃에서 가장 많은 양이 검출되었고, -20℃ 및 -4℃의 순으로 냉동온도가 높아짐에 따라 유효물질의 함량이 감소함을 확인하였다. 또한, -80℃에서 냉동 저장한 시료는 다른 온도에서 저장 한 시료와 비교하여 가장 강력한 항산화 활성을 나타냈다. 이상의 결과를 통해 아로니아를 냉동 저장할 경우에는 가급적 -80℃ 와 같은 초저온에서 보관하는 것이 생리활성 물질 및 항산화 활성의 손실을 최소화할 수 있을 것으로 사료된다.

Acknowledgements

This research was supported by Basic Science Research Program through the National Research Foundation of Korea (NRF-2016R1A2B4014977). The authors would like to acknowledge the assistance of Prof. Joon-Kwan Moon for help with anthocyanin analysis.

References

1.

Kokotkiewicz A, Jaremicz Z, Luczkiewicz M (2010) Aronia plants: A review of traditional use, biological activities, and perspectives for modern medicine. J Med Food, 13, 255-269

KokotkiewiczA, JaremiczZ, LuczkiewiczM. 2010; Aronia plants: A review of traditional use, biological activities, and perspectives for modern medicine. J Med Food. 13:255-269

2.

RossiA, SerrainoI, DugoP, Di PaolaR, MondelloL, GenoveseT, MorabitoD, DugoG, SautebinL, CaputiAP., CuzzocreaS. 2003; Protective effects of anthocyanins from blackberry in a rat model of acute lung inflammation. Free Rad Res. 37:891-900

3.

Wu X, Gu L, Prior RL, McKay S (2004) Characterization of anthocyanins and proanthocyanidins in some cultivars of Ribes, Aronia, and Sambucus and their antioxidant capacity. J Agric Food Chem, 52, 7846-7856

WuX, GuL, PriorRL, McKayS. 2004; Characterization of anthocyanins and proanthocyanidins in some cultivars of Ribes, Aronia, and Sambucus and their antioxidant capacity. J Agric Food Chem. 52:7846-7856.

4.

Mikulic-PetkovsekM, SchmitzerV, SlatnarA, StamparF, VebericR. 2012; Composition of sugars, organic acids, and total phenolics in 25 wild or cultivated berry species. J Food Sci. 77:1064-1070

5.

SkrupienK, OszmianskiJ. 2007; The effect of mineral fertilization on nutritive value and biological activity of chokeberry fruit. Agric Food Sci. 16:46-55.

6.

Wilkes K, Howard LR, Brownmiller C, Prior RL (2014) Changes in chokeberry (Aronia melanocarpa L.) polyphenols during juice processing and storage. J Agric Food Chem, 62, 4018-4025

WilkesK, HowardLR, BrownmillerC, PriorRL. 2014; Changes in chokeberry (Aronia melanocarpa L.) polyphenols during juice processing and storage. J Agric Food Chem. 62:4018-4025

7.

Tolic M, Krbavcic IP, Vujevic P, Milinovic B, Jurcevic IL, Vahcic N (2017) Effects of weather conditions on phenolic content and antioxidant capacity in juice of chokeberries (Aronia melanocarpa L.) Pol J Food Nutr. Sci, 67, 67-74

TolicM, KrbavcicIP, VujevicP, MilinovicB, JurcevicIL, VahcicN. 2017; Effects of weather conditions on phenolic content and antioxidant capacity in juice of chokeberries (Aronia melanocarpa L.). Pol J Food Nutr. Sci. 67:67-74.

8.

O’MalleyP. 2012; Developing production, processing and marketing of aronia berries on small family farms in southeast Iowa. Leopold Center Prog Report p. 1-4

9.

Mayer-MiebachE, AdamiukM, BehsnilianD. 2012; Stability of chokeberry bioactive polyphenols during juice processing and stabilization of polyphenol-rich material from the by-product. Agric. 2:244-258

10.

YuanB, DanaoMC, StrattonJE, WeierSA, WellerCL, LuM. 2018; High pressure processing (HPP) of aronia berry puree: Effects on physicochemical properties, microbial counts, bioactive compounds, and antioxidant capacities. Innovative Food Sci Emerging Technol. 47:249-255

11.

ReinM. 2005; Copigmentation reactions and color stability of berry anthocyanins. et al.Helsinki University. Finland: p. 20-60.

12.

HowardLR, PriorRL, LiyanageR, LayJO. 2012; Processing and storage effect on berry polyphenols: challenges and implications for bioactive properties. J Agric Food Chem. 60:6678-6693

13.

Fracassetti D, Bo CD, Simonetti P, Gardana C, Klimis-Zacas D, Ciappellano S (2013) Effect of time and storage temperature on anthocyanin decay and antioxidant activity in wild blueberry (Vaccinium angustifolium) powder. J Agric Food Chem, 61, 2999-3005

FracassettiD, BoCD, SimonettiP, GardanaC, Klimis-ZacasD, CiappellanoS. 2013; Effect of time and storage temperature on anthocyanin decay and antioxidant activity in wild blueberry (Vaccinium angustifolium) powder. J Agric Food Chem. 61:2999-3005

14.

HellstromJ, MattilaP, KarjalainenR. 2013; Stability of anthocyanins in berry juices stored at different temperatures. J Food Compos Anal. 31:12-19.

15.

ZhangW, WangSY. 2003; Oxygen radical absorbing capacity of phenolics in blueberries, cranberries, chokeberries, and lingonberries. J Agric Food Chem. 51:502-509.

16.

Gonzalez-ManzanoS, DuenasM, Rivas-GonzaloJC, Escribano-BailonMT, Santos-BuelgaC. 2009; Studies on the copigmentation between anthocyanins and flavan-3-ols and their influence in the color expression of red wine. Food Chem. 114:649-656.

17.

Thi ND, Hwang ES (2015) Effects of different cooking methods on bioactive compound content and antioxidant activity of water spinach (Ipomoea aquatica). Food Sci Biotechnol, 24, 799-806

ThiND, HwangES. 2015; Effects of different cooking methods on bioactive compound content and antioxidant activity of water spinach (Ipomoea aquatica). Food Sci Biotechnol. 24:799-806

18.

Thi ND, Hwang ES (2016) Effect of drying methods on contents of bioactive compounds and antioxidant activity of black chokeberries (Aronia melanocarpa). Food Sci Biotechnol, 25, 55-61

ThiND, HwangES. 2016; Effect of drying methods on contents of bioactive compounds and antioxidant activity of black chokeberries (Aronia melanocarpa). Food Sci Biotechnol. 25:55-61.

19.

MisiakM, IrzyniecZ. 2009; Effect of the temperature and storage time on polyphenol content and antioxidant properties of freeze-dried chokeberries. Zesz. Nauk. Pol. Lod’z Chem. Spo’z Biotechnol. 73:73-81.

20.

Oszmianski J, Wojdylo A (2005) Aronia melanocarpa phenolics and their antioxidant activity. Eur Food Res Technol, 221, 809-813

OszmianskiJ, WojdyloA. 2005; Aronia melanocarpa phenolics and their antioxidant activity. Eur Food Res Technol. 221:809-813.

21.

JakobekL, SerugaM, Medvidovic-KosanovicM, NovakI. 2007; Antioxidant activity and polyphenols of aronia in comparison to other berry species. Agric Consp Sci. 72:301-306.

22.

Allaith AA, Ahmed SH, Jafer F (2012) Effect of different thermal treatments and freezing on the antioxidant constituents and activity of two Bahraini date cultivars (Phoenix dactylifera L.). Int J Food Sci Technol, 47, 783-792

AllaithAA, AhmedSH, JaferF. 2012; Effect of different thermal treatments and freezing on the antioxidant constituents and activity of two Bahraini date cultivars (Phoenix dactylifera L.). Int J Food Sci Technol. 47:783-792

23.

BofCMJ, FontanaRC, Piemolini-BarretoLT, SandriIG. 2012; Effect of freezing and processing technologies on the antioxidant capacity of fruit pulp and jelly. Braz Arch Biol Technol. 55:107-114

24.

AncosB, IbanezE, RegleroG, CanoMP. 2000; Frozen storage effects on anthocyanins and volatile compounds of raspberry fruit. J Agric Food Chem. 48:873-879.

25.

SyamaladeviRM, SablaniSS, TangJ, PowersJ, SwansonBG. 2011; Stability of anthocyanins in frozen and freeze-dried raspberries during long-term storage: In relation to glass transition. J Food Sci. 76:414-421

26.

Jacques AC, Pertuzatti PB, Barcia MT, Zambiazi RC, Chim JF (2010) Stability of bioactive compounds in frozen pulp of blackberry (Rubus fructicosus) cv. Tupy. Quim Nova, 33, 1720-1725

JacquesAC, PertuzattiPB, BarciaMT, ZambiaziRC, ChimJF. 2010; Stability of bioactive compounds in frozen pulp of blackberry (Rubus fructicosus) cv. Tupy. Quim Nova. 33:1720-1725.

27.

Rop O, Mlcek J, Jurikova T, Valsikova M, Sochor J, Reznicek V, Kramarova D (2010) Phenolic content, antioxidant capacity, radical oxygen species scavenging and lipid peroxidation inhibiting activities of extracts of five black chokeberry (Aronia melanocarpa (michx.) elliot) cultivars. J Med Plants Res, 22, 2432-2437

RopO, MlcekJ, JurikovaT, ValsikovaM, SochorJ, ReznicekV, KramarovaD. 2010; Phenolic content, antioxidant capacity, radical oxygen species scavenging and lipid peroxidation inhibiting activities of extracts of five black chokeberry (Aronia melanocarpa (michx.) elliot) cultivars. J Med Plants Res. 22:2432-2437.

28.

KedzierskaM, OlasB, WachowiczB, GlowackiR, BaldE, CzernekU, Szydlowska-PazeraK, PotemskiP, PiekarskiJ, JeziorskiA. 2012; Effects of the commercial extract of Aronia on oxidative stress in blood platelets isolated from breast cancer patients after the surgery and various phases of the chemotherapy. Fitoterapia. 83:310-317

29.

Malinowska J, Babicz K, Olas B, Stochmal A, Oleszek W (2012) Aronia melanocarpa extract suppresses the biotoxicity of homocysteine and its metabolite on the hemostatic activity of fibrinogen and plasma. Nutr, 28, 793-798

MalinowskaJ, BabiczK, OlasB, StochmalA, OleszekW. 2012; Aronia melanocarpa extract suppresses the biotoxicity of homocysteine and its metabolite on the hemostatic activity of fibrinogen and plasma. Nutr. 28:793-798

30.

RuginaD, ScontaZ, LeopoldL, PinteaA, BuneaA, SocaciuC. 2012; Antioxidant activities of chokeberry extracts and the cytotoxic action of their anthocyanin fraction on hela human cervical tumor cells. J Med Food. 15:700-706.
