Introduction
Although the amount of exported Korean sweet persimmon has shown a steady increase in recent years, the importing countries have been limited to Southeast Asian countries such as Malaysia, Singapore, Hong Kong, Thailand, and Vietnam, due to the tighter quarantine processes in the United States of America and in European countries. Indeed, persimmon fruits are host to various quarantined pests including the persimmon fruit worm, the light brown apple moth, the long-tailed mealy bug, archips breviplicanus, and monema flavescens, which limit fruit export and marketability (1). Thus, to expand the export regions of persimmon fruit, the quarantine requirements of the various countries must be satisfied. To achieve this, fumigation (e.g., methyl bromide), extreme temperatures, the use of controlled atmospheres, irradiation, and combinations of the above are commonly employed (2). More specifically, methyl bromide (CH3Br) treatment is often used for pest control because it has a wide spectrum of activity (3). However, an eco-friendly replacement for methyl bromide was necessary due to its phase-out requirements outlined in the 1987 Montreal Protocol on Ozone Depleting Substances (4).
In addition, irradiation is an effective and eco-friendly non-chemical treatment for the eradication of harmful insects in fruits and vegetables (5,6). It has been also suggested that ionizing irradiation could be employed to sterilize or kill pests without damaging the flowers (7), with γ-irradiation doses <1 kGy being permitted for treating the majority of fresh fruits and vegetables (8). However, high doses of radiation can promote the softening of persimmon fruits, which renders them undesirable and unmarketable.
To retain the quality of persimmon fruit following treatment with γ-irradiation, a combined technique based on the use of 1-methylcyclopropene (1-MCP) could be employed, as this prevents ethylene-dependent responses, such as the softening and senescence of fruits and vegetables (9). 1-MCP is structurally similar to ethylene, and so it binds irreversibly to the ethylene receptors of persimmon, and has great potential in terms of delaying softening and extending product shelf-life (9,10). Indeed, the effect of 1-MCP in delaying ripening and softening has been studied in a number of fruits, including guava, apple, cherimoya, pear, mangosteen, plum, and avocado (11-16).
Thus, we herein report the use of γ-irradiation for the treatment of sweet persimmon with doses of 0, 200, 400, 600, and 800 Gy. Changes in the persimmon quality following γ-irradiation and treatment with 1-MCP are investigated by measuring the firmness, respiration rate, color change, and physiological injuries following storage.
Materials and methods
‘Fuyu’ persimmon fruit, freshly harvested from a farm in Changwon, Korea, was purchased and transported to a chilled storage unit at 0℃ prior to treatment with 1-MCP and γ-irradiation. Persimmon fruits with an approximate mass of 210±10 g and without any decay or visible physiological damage were selected and used for the following experiments.
Prior to γ-irradiation treatment, the persimmon fruit samples were treated by 1-MCP through exposure to 1-MCP gas (1 μL/L) at 25℃ for 24 h in a sealed polyethylene container with sufficient headspace to prevent the development of anaerobic respiration. A control sample was also prepared in polyethylene container and subjected to the same conditions in the absence of 1-MCP gas. Following treatment, the persimmon fruits were removed from the container and immediately transported for γ-irradiation treatment.
The persimmon fruit samples were subjected to γ-irradiation using a cobalt-60 irradiator (ACEL, MDS Nordion International Co., Ltd., Ottawa, Canada) at the Korean Atomic Energy Research Institute, Jeongeup, Korea. The absorbed doses were measured using an alanine-electron paramagnetic resonance dosimetry system with an EMS 104 EPR analyzer (Bruker Biospin, Rheinstetten, Germany). The dose rate of γ-irradiation was 0.6 kGy/h and the doses absorbed on the persimmon samples ranged from 200 to 800 Gy. The irradiated fruit samples were then stored at 0℃ prior to quality analysis.
The firmness of the persimmon fruit was obtained from the maximum force at which the skinned fruit was punctured at 1.0 mm/s. This was determined at three locations along the circumference using a 5 mm cylindrical probe on a texture analyzer (TA-XT2, Stable Micro Systems Co., Godalming, England).
The skin color of the fruit samples was measured at three locations on the circumference of the fruit using a Minolta Chromameter (Model CR-400, Minolta, Ramsey, NJ, USA). The measured color values of L (brightness), a (redness), and b (yellowness) were then converted to a skin color index that is commonly employed to describe the changes in maturity of persimmon fruits from light yellow to orange/red (17-20) as outlined in equation 1:
Two persimmon fruit samples were transferred from cold storage at 0℃ to a 1 L glass bottle and stored at 25℃ for 24 h prior to measurement of the gas concentration. More specifically, the headspace O2 and CO2 concentrations in each bottle were measured as volume percentages at atmospheric pressure using a gas sensor (Model Check Mate 9900, PBI-Dansensor, Ringsted, Denmark).
As one of the most serious physiological injuries of persimmon fruit, flesh softening was calculated as the percentage of fruit with visual softness following treatment by γ-irradiation and 1-MCP.
The firmness and gas concentration data obtained as described above were statistically analyzed using analysis of variance (ANOVA). The Statistical Package for the Social Sciences (SPSS, Version 22.0, SPSS Inc., Chicago, IL, USA) was used for analysis, and Duncan’s multiple range tests were employed to determine any significant differences (p<0.05) in the various groups.
Results and discussion

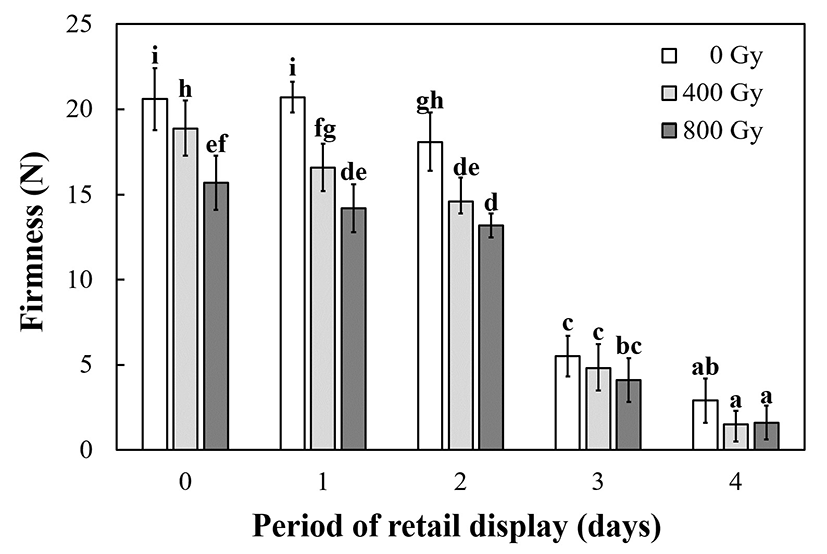

Although the use of high doses of γ-irradiation can annihilate harmful insects, they may also result in a deterioration of the quality of persimmon fruit. For example, the firmness of persimmon fruit can be severely affected by γ-irradiation. Thus, Fig. 1 shows how firmness of persimmon fruits varied over the period of the retail display at 25℃ following γ-irradiation treatment at 0, 400, and 800 Gy and cold storage at 0℃ for 60 day. As indicated, the fruit firmness decreased gradually at 25℃ over the initial 2 day, after which time it decreased rapidly from 15-29 N to <5 N over the following 3 day at 25℃, to the extent that the resulting fruits were not of a suitable quality for sale. For the control sample (i.e., non-irradiated persimmon fruits, 0 Gy), the firmness did not decrease significantly (p>0.05) until after 1 day at 25℃, but significant (p<0.05) decreases to 12.1 and 85.9% were observed after 2 and 4 day, respectively. In contrast, the firmness of the γ-irradiated persimmon fruit samples decreased significantly (p<0.05) between 0 and 2 day upon increasing the irradiation dose (day 0, 0 Gy=20.6 N, 400 Gy=18.9 N, 800 Gy=15.7 N; day 2, 0 Gy=18.1 N, 400 Gy=14.6 N, 800 Gy=13.2 N). Although the firmness decreased further after 3 day, this reduction was not statistically significant (p>0.05) due to the degree of softening observed before this point. Although irradiation treatment has been reported to delay enzymatic activities, ripening, and the senescence of climacteric fruits (21), we expect that the reduced firmness of persimmon fruit following γ-irradiation could possibly be due to radiation injuries to the fruit, which result in the severe degradation of insoluble pectic substances to yield their soluble forms (22).

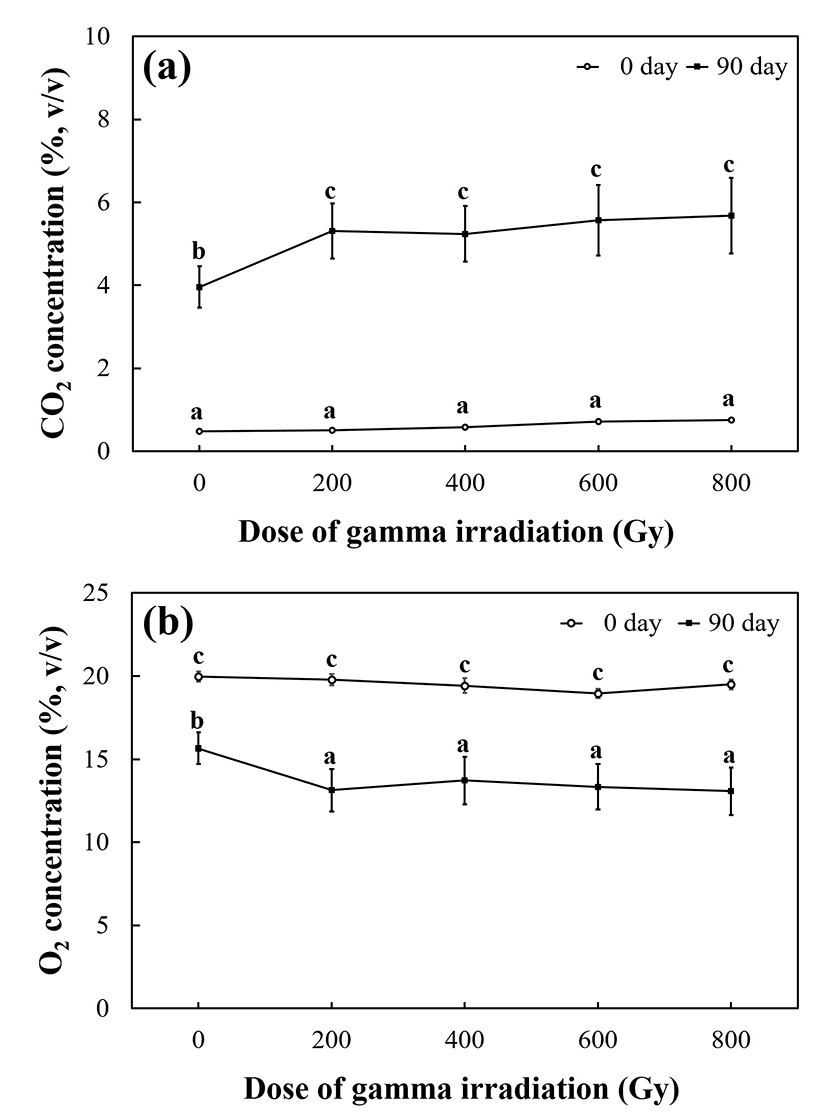

The respiration rate of γ-irradiated persimmon fruit was expressed in terms of the CO2 production and the O2 consumption. Thus, Fig. 2 shows the CO2 and O2 concentrations of the γ-irradiated samples both before and after storage at 0℃ for 90 day. More specifically, the CO2 gas concentration at day 0 following γ-irradiation treatment ranged from 0.48 to 0.75% (v/v), but was not statistically significant (p>0.05). However, for the persimmon samples stored at 0℃ for 90 day following γ-irradiation, the CO2 concentration increased significantly (p<0.05) from 3.96% (v/v) for the control (non-irradiated) sample to 5.31 and 5.68% (v/v) for those irradiated at 200 and 800 Gy, respectively, thereby indicating that the increase between different irradiation doses was not significant. A similar trend was observed for O2 consumption. In this case, at day 0, the O2 concentration of the non-irradiated sample was 19.95% (v/v), and no significant (p>0.05) change was observed following γ-irradiation treatment up to 800 Gy. However, the O2 concentration of the irradiated sample stored at 0℃ for 90 day decreased significantly (p<0.05) from 15.66% (v/v) for the control to 13.08% (v/v) for the sample irradiated at 800 Gy. These results indicate that the persimmon respiration rate was greatly affected by γ-irradiation, but that no significant (p>0.05) difference was observed between irradiation doses. Indeed, it has been reported that harvested fresh fruits and vegetables are highly sensitive to various stresses, including wounding, bruising, and other types of physical damages (e.g., irradiation), where an increased respiration rate and ethylene production are among the general responses of fresh fruits and vegetables to these stresses (21).

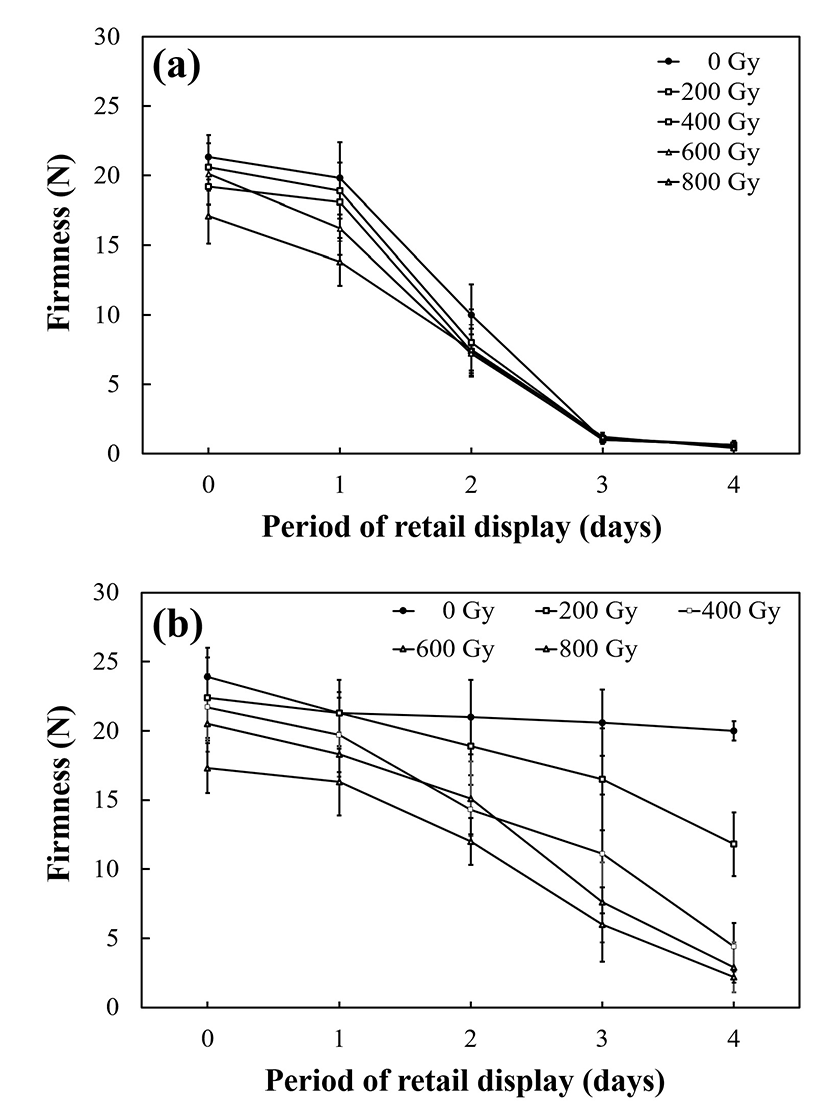

To reduce the deterioration of persimmon fruits upon treatment with γ-irradiation, 1-MCP was also employed for sample treatment. As it is commonly known, fruit softening of persimmon can be slowed upon storage at cold temperatures due to inhibited ethylene production. Indeed, as a natural plant hormone, ethylene promote the ripening of fruits (23). The harvested persimmon samples were thus subjected to 1-MCP treatment prior to γ-irradiation, and Fig. 3 indicates how the firmness of the persimmon fruit varied upon display at 25℃ following irradiation and subsequent cold storage at 0℃ for 90 day both with and without 1-MCP treatment. As shown in Fig. 3a, in the absence of 1-MCP treatment, the fruit firmness decreased over the display period and upon increasing the irradiation dosage. More specifically, after 1 d, the firmness significantly (p<0.05) decreased from 18.9 N for 200 Gy to 13.8 N for 800 Gy irradiation, and after 3 day, the firmness was <1 N for all conditions. However, the effect of 1-MCP on the firmness of the persimmon fruit samples was significant. In this case (see Fig. 3b), the firmness of the control (non-irradiated) sample decreased slightly from 23.9 N on day 0 to 20.0 N on 4 day, and this decrease was more pronounced at higher irradiation doses (after 3 day, firmness decreases of approximately 20, 46, 63, and 71% were observed for irradiation at 200, 400, 600, and 800 Gy). Interestingly, following pre-treatment with 1-MCP and irradiation below 400 Gy, the firmness of the fruit samples remained above 10 N. These results indicated that 1-MCP treatment could minimize the loss of fruit firmness included by γ-irradiation treatment. Indeed, Fan et al. (24) showed similar results for the irradiation of ‘Gala’ apples following 1-MCP treatment.

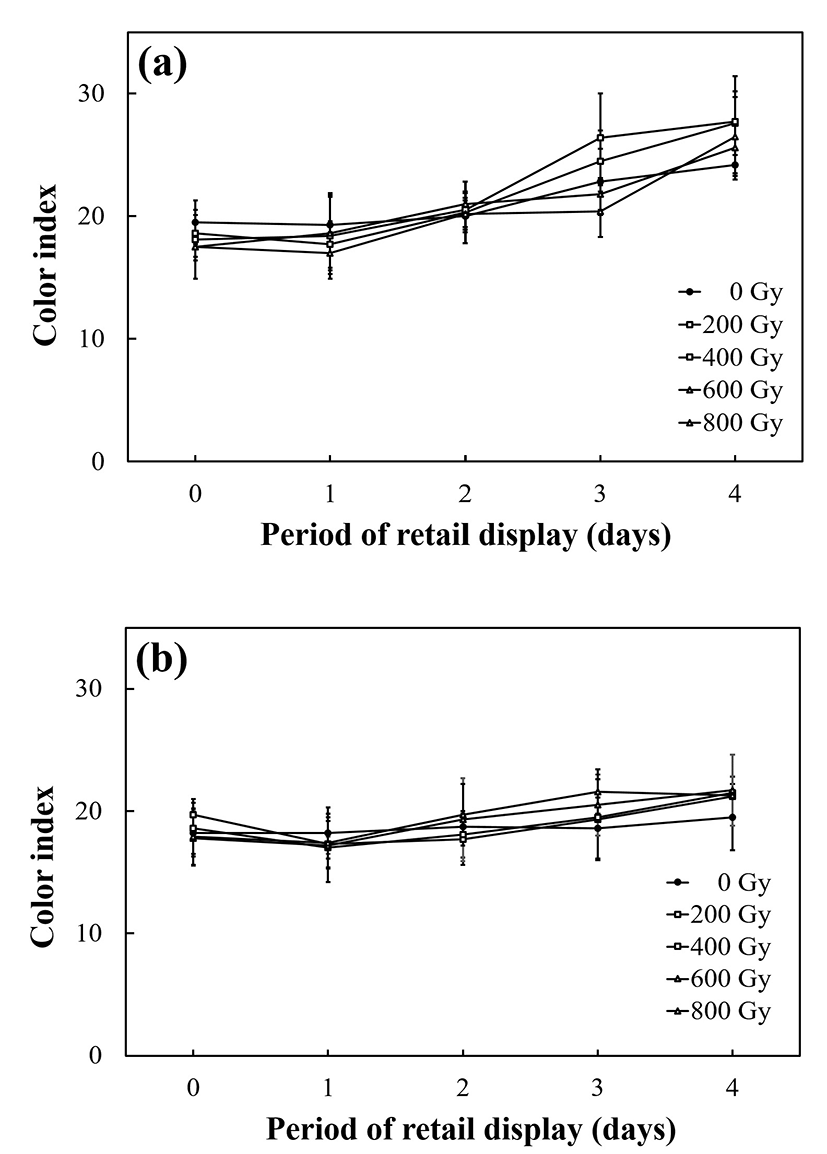

Fig. 4 shows color indices of the 1-MCP-treated non-treated persimmon samples over the 25℃ display period following irradiation and subsequent cold storage at 0℃ for 90 day. As indicated, the color indices increased over 3 day, but no significant increase was observed for the samples treated with 1-MCP. It should be noted here that a higher color index indicates ripening of the persimmon fruit and an increase in the a (redness) value. No significant differences were observed upon varying the irradiation dose for either set of samples.

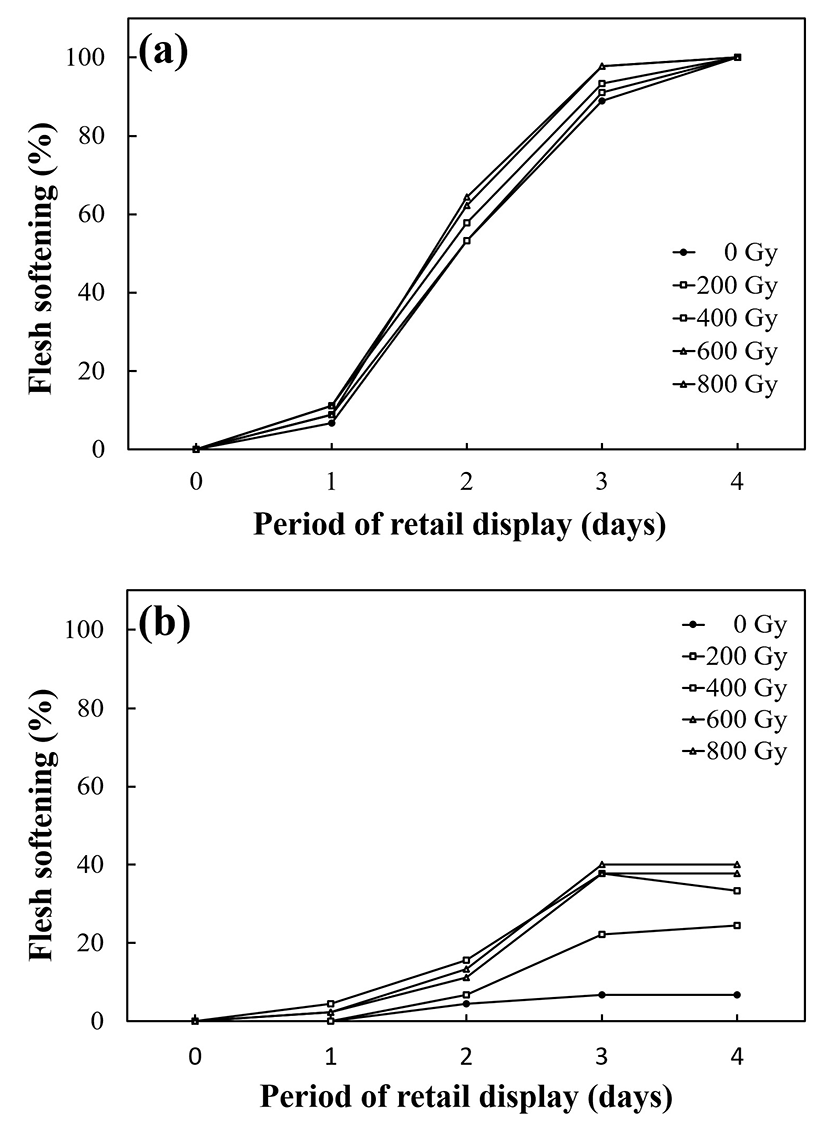

Flesh softening is the main injury to persimmon fruit that is responsible for drop in its commodity value. As expected, γ-irradiation dramatically increased flesh softening over the retail display time examined herein. Although the dose of γ-irradiation employed also affected flesh softening, all samples exhibited this injury following display for 4 day at 25℃. However, we found that 1-MCP treatment dramatically reduced flesh softening from 100 to 40% (on day 4) even in the samples treated with high doses (i.e., 800 Gy) of γ-irradiation. Indeed, it was previously reported that the softening of persimmon fruit was inhibited until after 15 day following treatment with 100 nL/L 1-MCP (25). We therefore expect that 1-MCP prevents flesh softening due to the delayed pre-climacteric stage and the high affinity of 1-MCP towards the ethylene receptors of persimmon (25).
